Introduction:
An incubator is a machine which is use for hatching bird’s eggs. The incubator we design can almost hatch all kinds of bird eggs. Like Chickens, Ducks, Pheasants, Peafowls, Turkeys etc.
The Incubator we design here is Semi Auto. It means that The temperature control will be automatic while eggs turning will be manual by hand also humidity will be manual .it’s very easy to operate a semi auto incubator successfully .For humidity level control you just need to increase the water surface level will increase humidity level and vice versa .
The eggs turning .Two to three times a day will give you a good result. (For good result 8 hours duration between each turning)
Components Used in This Project:
1: A Box (Can be made from Wood, fly board, plastic or Aluminum anything that can hold heat inside). 2: Controller I am using XK-W1099 Digital Thermostat Humidity Controller for AC System . 3:Temperature Controller W1209 for DC System (Optional). 4: Eggs Tray which holds eggs inside Incubator box and also helps in turning eggs with hand. 5: A Humidifier to maintain the required humidity level. 6:Power supply 12v. 7:DC relays 12v. 8:Light Holders. 9:Light Bulb 100W (incandescent ).etcCircuit for AC power connection:

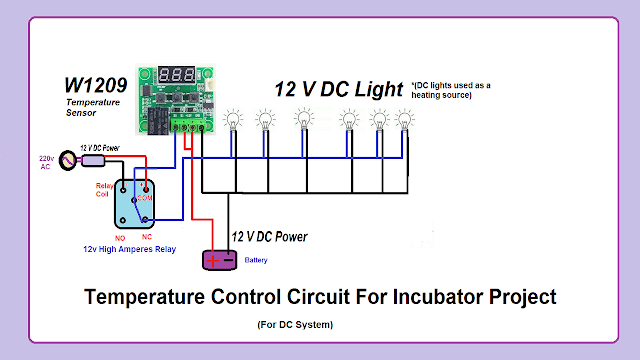

Circuit for DC power connection(Optional):
Fan Connection control from both AC(220v) and DC power(12v Battery) :
Project Images:
Fertile eggs:
Eggs Inside Tray:
Incubator Inside:
Eggs shell after hatching:
Chicks:
Video Link : https://www.youtube.com/watch?v=O7dljbWpVK0
